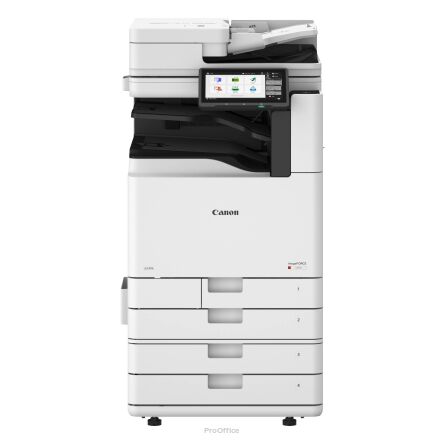

Canon imageFORCE C3150

Szybkie wielofunkcyjne urządzenie kolorowe A3 zaprojektowane z myślą o dużych biurach przyspiesza pracę i zwiększa wydajność. Poznaj najnowocześniejszą technologię, kompleksowe zabezpieczenia i wysoką jakość druku.

Szczegółowe specyfikacje

Jednostka główna

• Typ maszyny

A3 Kolorowy Wielofunkcyjny

• Podstawowe funkcje

Drukuj, kopiuj, skanuj, wysyłaj, przechowuj i opcjonalnie faksuj

• Prędkość procesora

Procesor dwurdzeniowy 1,8GHz

• Panel sterowania

Panel dotykowy TFT LCD WSVGA Color Touch o średnicy 10,1 cala

• Pamięć

Standard: RAM 5,0GB

• Przechowywanie

Standard: (SSD) 256 GB
Opcjonalnie: (SSD) 1TB

• Połączenie interfejsowe

STANDARD SIECI
: 1000Base-T/100Base-TX/10Base-T, Opcjonalnie:
Bezprzewodowa LAN (IEEE 802.11 a/b/g/n/ac/ax)
INNE
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Urządzenie) x1;
Opcjonalnie: Interfejs szeregowy, Interfejs Kontroli kopiowania

• Pojemność papieru (A4, 80 gsm)

Standard: 1 200 arkuszy
100 arkuszy: Wielofunkcyjna taca x 1
550 arkuszy: Standardowa kaseta x 2
Maksymalnie: 6 350 arkuszy (z jednostką podawania kaset o dużej pojemności – G1 + jednostką papierowej – F3)

• Pojemność wyjściowa papieru (A4, 80 gsm)

Maksymalnie: 3 450 arkuszy (z Staple Finisher-AH1 lub Booklet Finisher-AH1 i Copy Tay-T2)

• Możliwości wykończenia

Zszywanie, grupowanie, offset, zszywanie, ścieg siodłkowy, dziurkacze, eko-zszywka, zszywanie na żądanie
* Możliwości wykończenia różnią się w zależności od dostępnych opcji.

• Obsługiwane typy mediów

Tacka wielofunkcyjna:
cienka, gładka, recyklingowa, kolorowa, ciężka, powłokowa*, obrysowująca, bond, przezroczysta, etykieta, wstępnie dziurkowana, papier firmowy, koperta
* 257~300gsm wymaga zestawu
do regulacji nośników górna kaseta:
cienka, gładka, recyklingowa, kolorowa, ciężka, bond, przezroczysta, wstępnie dziurkowana, nagłówek firmowy, koperta*
* Dodatek do podawania koperty B (standardowy) jest wymagany, z wyjątkiem ISO-C5.
Dolna kaseta:
cienka, gładka, poddana recyklingowi, kolorowa, ciężka, bond, przezroczysta, wstępnie dziurkowana, papier firmowy, koperta*
* Wymagane jest załącznik do koperty A (standardowy)

• Obsługiwane rozmiary nośników

Tacka wielofunkcyjna:
Standardowy rozmiar: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Rozmiar niestandardowy: 98,4 x 139,7 mm do 320,0 x 457,2 mm
Rozmiar wolny: 100,0 x 148,0 mm do 304,8 x 457,2 mm
Koperty: COM10 Nr 10, Monarch, ISO-C5, DL
Rozmiar niestandardowy: 98,0 x 98,0 mm do 320,0 x 457,2 mm
Górna kaseta:
Standardowy rozmiar: A4, A5, A5R, A6R, B5
Niestandardowy rozmiar: 105,0 x 148,0 mm do 297,0 x 215,9 mm
Koperty: ISO-C5
Dolna kaseta:
Standardowy rozmiar: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Niestandardowy rozmiar: 105,0 x 148,0 mm do 304,8 x 457,2 mm
Koperty*: COM10 Nr 10, Monarch, DL
* Dodatek do podawania kopert A (standardowy).

• Supported Media Weights

Multi-purpose tray: 52 to 300 gsm (Only 60 to 300 gsm supported with Media Adjustment Kit-A1*)
* Media Adjustment Kit-A1 is required for Coated (257-300gsm)
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm

• Warm-up Time

Quick Startup Mode: 4 Seconds
From Sleep Mode: 10 Seconds

• Dimensions (W x D x H)

With Single Pass DADF-E1: 565 x 745 x 897 mm
With Single Pass DADF-F1: 565 x 745 x 862 mm

• Installation Space (W x D)

Basic:
978 x 1,141 mm (right door & multi-purpose tray opened + paper cassette opened)
Fully Configured:
1,806 x 1,141 mm (with Single Pass DADF-E1/F1 + Staple Finisher-AH1/Booklet Finisher-AH1 + Paper Deck Unit-F3 + paper cassette open)

• Weight

With Single Pass DADF-E1: Approx. 91 kg*
With Single Pass DADF-F1: Approx. 84 kg*
* including the optional 1st Copy Tray Kit-C1

Print Specifications

• Print Speed

imageFORCE C3150
1-sided: Up to 50 ppm (A4, A5R), Up to 25 ppm (A3), Up to 45 ppm (A5, A6R), Up to 30 ppm (A4R)
2-sided: Up to 50 ppm (A4), Up to 45 ppm (A5R), Up to 25 ppm (A3), Up to 30 ppm (A4R)

imageFORCE C3135:
1-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 17 ppm (A4R)
2-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 17 ppm (A4R)

imageFORCE C3130:
1-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)
2-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)

imageFORCE C3126:
1-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)
2-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)

imageFORCE C3122:
1-sided: Up to 22 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)
2-sided: Up to 22 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)

• Print Resolution (dpi)

4,800 x 2,400

• Page Description Languages

Standard: UFR II, PCL6/PCL5, Adobe® PostScript®3TM

• Mobile / Cloud Printing

AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online, Universal Print and Cloud Connector
A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.
Please contact your sales representative for further information

• OS Standard Printing

Android, Windows® 10/11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS

• Fonts

PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*¹ (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*₂

*1 Optional PCL International Font Set-A1 is required.
*2 Optional Barcode Printing Kit-D1 is required.

• Print Features

Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold Printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

• Operating Systems

UFR II: Windows® 10/11/Server2016/Server2019/Server2022/Server2025*¹, macOS (11.7 or later)*²
PCL: Windows® 10/11/Server2016/Server2019/Server2022/Server2025*¹
PS: Windows® 10/11/Server2016/Server2019/Server2022/Server2025*¹, macOS (11.7 or later)*²
PPD: Windows® 10/11*², macOS (11.7 or later)*²

*1 As of Sep. 2025
*2 As of Oct. 2025

Copy Specifications

• Copy Speed

imageFORCE C3150:
1-sided: Up to 50 ppm (A4, A5R), Up to 16 ppm (A3), Up to 45 ppm (A5, A6R), Up to 22 ppm (A4R)
2-sided: Up to 50 ppm (A4), Up to 30 ppm (A5R), Up to 12 ppm (A3), Up to 22 ppm (A4R)

imageFORCE C3135:
1-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 17 ppm (A4R)
2-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 17 ppm (A4R)

imageFORCE C3130:
1-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)
2-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)

imageFORCE C3126:
1-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)
2-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)

imageFORCE C3122:
1-sided: Up to 22 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)
2-sided: Up to 22 ppm (A4), Up to 15 ppm (A3), Up to 15 ppm (A4R)

• First-Copy-Out Time

imageFORCE C3135: Approx. 5.5 / 7.4 seconds or less
imageFORCE C3130/C3126/C3122: Approx. 6.1 / 8.4 seconds or less
imageFORCE C3150: Approx. 4.2 / 5.5 seconds or less

• Copy Resolution (dpi)

600 x 600

• Multiple Copies

Up to 999 copies

• Magnification

Variable zoom: 25% to 400% (1% Increments)

• Copy Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample, Dropout Color

Scan Specifications

• Type

Standard: Color Platen
Optional: Platen Cover-Y3, Single Pass DADF-E1* or Single Pass DADF-F1** [2-sided to 2-sided (Automatic with DADF)]
* Multi-Sheet Feed Detection is supported.
** Multi-Sheet Feed Detection is supported as option

DADF: Duplexing Automatic Document Feeder

• Pull Scan Specifications

Color Network ScanGear2 for both TWAIN and WIA
Supported OS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025*

*As of Oct. 2025

• Scan Resolution (dpi)

600ｘ600

• Document Feeder Paper Capacity (80 gsm)

Single Pass DADF-E1: up to 200 Sheets
Single Pass DADF-F1: up to 100 Sheets

• Acceptable Originals/Weights

Document Feeder media weight:
Single Pass DADF-E1:
1-sided scanning: 38 to 220 gsm (BW, CL)
2-sided scanning: 38 to 220 gsm (BW, CL)
*An acceptable weights of A6R or smaller is 50 to 220gsm.

Single Pass DADF-F1:
1-sided scanning: 38 to 128 gsm (BW, CL)
2-sided scanning: 50 to 128 gsm (BW, CL)

• Supported Media Sizes

Platen scanning size: up to 297.0 x 431.8 mm
Single Pass DADF-E1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R
Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm
Single Pass DADF-F1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R
Custom size: 48.0 x 85.0 mm to 304.8 x 431.8 mm

• Scan Method

Push Scan, Pull Scan, Scan to Box, Scan to Advanced Space, Scan to Network, Scan to USB Memory Key, Scan to Mobile devices, Scan to cloud (uniFLOW Online)

• Scan Speed

Single Pass DADF-E1:
1-sided Scanning: 135/135 (300 x 300 dpi, send)
2-sided Scanning: 270/270 (300 x 300 dpi, send)
Single Pass DADF-F1:
1-sided Scanning: 80/80 (300 x 300 dpi, send)
2-sided Scanning: 120/120 (300 x 300 dpi, send)

Send Specifications

• Destination

Standard: E-mail/Internet FAX (SMTP*), SMB, FTP, SFTP, FTPS, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
* Available OAuth 2.0 authentication method on Microsoft Exchange Online and Google Workspace

• Address Book / Speed Dials

LDAP (2,000)/Local (1,600)/Speed dial (200)

• Communication Protocol

File: FTP (TCP/IP), SFTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV
E-mail/iFax: SMTP(send), POP3(receive)

• File Format

TIFF (MMR), JPEG*, PDF (Compact, Searchable, Optimize for Web, PDF/A-1a, A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, PDF/A-3a, PDF/A-3b, PDF/A-3u, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable), PDF/XPS (Device Signature, User Signature), Office Open XML (PowerPoint, Word)
* Single-Page only.

• Universal Send Features

Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Originals, Dropout Color

Fax Specifications

• Modem Speed

Super G3: 33.6 kbps
G3: 14.4 kbps

• Compression Method

MH, MR, MMR, JBIG

• Resolution (dpi)

400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)

• Sending/Receiving Size

Sending: A3, A4, A4R, A5*¹, A5R*¹, A6R*¹, B4, B5*², B5R*¹
Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R
*1 Sent as A4
*2 Sent as B4 short

• Fax Memory

Up to 30,000 pages (2,000 jobs)

• Speed Dials

Max. 200

• Group Dials/Destinations

Max. 199 dials

• Sequential Broadcast

Max. 256 addresses

• Memory Backup

Yes

• Fax Features

Sender's Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log

Store Specifications

• Mail Box

100 User Inboxes,
1 Memory RX Inbox,
50 Confidential Fax Inboxes
Maximum 10,000 Pages (2,000 jobs) Stored

• Advanced Space

Communication Protocol: SMB or WebDAV
Supported Client PC: Windows® 10/11*
Concurrent Connections (Max.): SMB:64, WebDAV:3
*Windows 11 only supports SMB

As of Oct. 2025

• Advanced Space Available Disk Space

Standard:16 GB
(With option: max. 480 GB)

• Advanced Space Features

Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

Security Specifications

• Authentication & Access Control

User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW*1(PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication (Password Login, Card Login), Google Workspace (Pasword Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control)
*1 Optional

• Network Security

TLS 1.3 (FIPS140-3), IPSec (FIPS140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Space in the MFP, Scan and Send -Virus Concerns for E-mail Reception

• Document Security

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically),
Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark
*1 Optional

• Device Security

Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification (Validation pending)

• Device Management & Auditing

Administrator Password, Digital Certificate And Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (SIEM), Image Data Logging, Security Policy Setting

Environmental Specifications

• Operating Environment

Temperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)

• Power Source

220-240 V, 50/60 Hz, 5A

• Power Consumption

For imageFORCE C3135/C3130/C3126/C3122:
Maximum: Approx. 1,500 W
Copying (with DADF continuous scan):
Approx. 702W*¹
Standby: Approx. 140 W*¹
Sleep mode: Approx. 0.5 W*²

For imageFORCE C3150:
Maximum: Approx. 1,800 W
Copying (with DADF continuous scan):
Approx. 807W*¹
Standby: Approx. 136W*¹
Sleep mode: Approx. 0.5 W*²
*1 Reference value: measured one unit
Sleep mode: Approx. 0.5 W*
*2 0.5 W is not available in all circumstances due to
certain settings.
Typical Electricity Consumption (TEC)*:
imageFORCE C3150: 0.49 kWh
imageFORCE C3135: 0.33 kWh
imageFORCE C3130: 0.27 kWh
imageFORCE C3126: 0.24 kWh
imageFORCE C3122: 0.20 kWh

*As per USA Energy Star 3.2
For detailed information relating to Erp:Lot6/26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/

• Noise Levels

Sound Power Level (LWA,m)*
Active (BW)(1-sided)
imageFORCE C3150: 63 dB, Kv 3 dB
imageFORCE C3135: 61 dB, Kv 3 dB
imageFORCE C3130: 60 dB, Kv 3 dB
imageFORCE C3126: 60 dB, Kv 3 dB
imageFORCE C3122: 60 dB, Kv 3 dB

Sound Pressure (LpAm)*
Bystander's position:
Active(BW/CL)(1-sided):
imageFORCE C3150: 49 dB/ 50dB
imageFORCE C3135: 47 dB/ 48 dB
imageFORCE C3130: 47 dB/ 47 dB
imageFORCE C3126: 46 dB/ 47 dB
imageFORCE C3122: 46 dB/ 46 dB
*Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)

Stand-by:
imageFORCE C3150: 18dB
imageFORCE C3122 / C3126 / C3130 / C3135:
Noise-free

Noise-free*
* “Noise-free” means that the sound pressure level at each bystander position is below the absolute criterion for background noise specified in ISO 7779.

• Standards

Blue Angel (Validation pending)

Software & Printer Management

• Tracking & Reporting

uniFLOW Online

• Remote Management Tools

iW Enterprise Management Console
Remote Distribution & Management Service
Monitoring Service

• Scanning Software

Color Network ScanGear 2

• Optimisation Tools

Canon Driver Configuration Tool

• Platform

MEAP (Multifunctional Embedded Application Platform)

Consumables

• Toner Cartridge/s

Toner 1007 BK/C/M/Y

• Toner Estimated Yield

(Estimated @ 5.0% Coverage)

Toner 1007 BK: 36,000 pages
Toner 1007 C/M/Y: 19,000 pages

Paper Supply Options

• Cassette Feeding Unit

Cassette Feeding Unit-BB1*
Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)
Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead
Paper Size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 256 gsm

Cassette Feeding Unit-AZ1**
Paper Capacity: 2 x 550 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled,
Color, Heavy, Bond, Transparency, Pre
punched, Letterhead
Paper Size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 256 gsm

*Compatible with imageFORCE C3135/3130/C3126/C3122
**Compatible with imageFORCE C3150

• High Capacity Cassette Feeding Unit

High Capacity Cassette Feeding Unit-G1
Paper Capacity: 2,450 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead
Paper Size: A4
Paper Weight: 52 to 256 gsm

• Paper Deck

Paper Deck Unit-F3
Paper Capacity: 2,700 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Color, Pre-punched, Letterhead
Paper Size: A4, B5
Paper Weight: 52 to 105 gsm

Output Options

• Copy Tray

1st Copy Tray Kit-C1
Capacity (with 80gsm paper):
1-Sided Printing:
A4, A5, A5R, A6R, B5, B5R: 250 sheets
SRA3, A3, A4R, B4: 100 sheets
2-Sided Printing:
A4, A5, A5R, A6R, B5, B5R: 200 sheets
SRA3, A3, A4R, B4: 100 sheets
Paper Weight: 52 to 300 gsm

Inner 2way Tray-M1
(Requires 1st Copy Tray Kit-C1)
Capacity (with 80 gsm paper)
Upper tray: A4, A5, A5R, A6R, B5: 100 sheets
SRA3, A3, A4R, B4, B5R: 50 sheets
Lower tray: Refer to 1st Copy Tray Kit-C1
Paper Weight: 52 to 300 gsm

Copy Tray-T2
Capacity (with 80gsm paper):
A4, A5R, B5: 100 sheets
A3, A4R, B4, B5R: 75 sheets
Paper Weight: 52 to 220 gsm

• Inner Finisher

Inner Finisher-N1
Tray Capacity (with 80gsm paper):
Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheets
Lower Tray: A4, A5, A5R, B5: approx. 500 sheets
A3, A4R, B4, B5R: 250 sheets
A6R: 30 sheets
SRA3, Envelope: 10 sheets
Paper Weight: 52 to 300 gsm
Staple Position: Corner, Double
Staple Capacity: (52 to 90 gsm)
A4, B5: 50 sheets
A4R: 40 sheets
A3, B4: 30 sheets
Eco Staple:
A3, A4, B4, B5: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: approx. 40 sheets (80 gsm)

• Staple Finisher

Staple Finisher-AH1
Tray Capacity (with 80gsm paper):
Upper Tray: A4, A5, A5R, A6R, B5: approx. 250 sheets
SRA3, A3, A4R, B4, B5R: approx. 125 sheets
Lower Tray: A4, A5, A5R, B5: 3,000 sheets
SRA3, A3, A4R, B4, B5R: 1,500 sheets
A6R: 250 sheets
Envelopes: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets
Paper Weight:
Upper Tray: 52 to 256 gsm
Lower Tray: 52 to 300 gsm
Staple Position: Corner, Double
Staple Capacity: (52 to 90 gsm)
A4, B5: 50 sheets
A4R: 40 sheets
A3, B4: 30 sheets
Eco Staple:
A3, A4: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: 50 sheets (52 to 90 gsm)

• Booklet Finisher

Booklet Finisher-AH1
(Includes the above Staple Finisher-AH1 basic staple specifications)
Saddle Stitch paper size: A3, A4R, B4
Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet 52 to 256 gsm)
Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm)

• Hole Puncher

2/4 Hole Puncher Unit-A1
(Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4

4 Hole Puncher Unit-A1
(Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1)
Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Four holes: A3, A4, A4R, A5, B4, B5, B5R

Inner 4 Hole Puncher-D1
(Requires the Inner Finisher-N1)
Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Four holes: A3, A4, A4R, A5, B4, B5, B5R

Inner 2/4 Hole Puncher-D1
(Requires the Inner Finisher-N1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4

Hardware Accessories

• Inne

Pojedynczy przejściowy DADF-E1
Pojedynczy Przejściowy DADF-F1
Podajnik dokumentów Zestaw do wykrywania podwójnego podawania-A1 (tylko dla jednorazowego DADF-F1)
Pokrywa-Y3
Ładownia użytkowa-B1
Klawiatura numeryczna-A2 Zestaw do regulacji
mediów-A1 Czytnik kart
IC dla klawiatury numerycznej-A1
Zestaw do dodatków do czytnika A2

Opcje bezpieczeństwa

• Bezpieczeństwo danych

250GB SSD-A1
1TB SSD-A1
Zestaw do Lustrzanego Odbicia Pamięci-A2

Opcje systemu i kontrolera

• Akcesoria do druku

PS Printer Kit-BG1
PCL International Font Set-A1 Zestaw do druku kodów
kreskowych-D1

• Akcesoria systemowe

Zestaw interfejsu sterowania kopiowaniem-A1
Zestaw interfejsu szeregowego-K3
Bezprzewodowa karta LAN-H1
Zestaw do Bezprzewodowego LAN Pakiet-C1
Bezprzewodowa LAN Licencja-A1

• Akcesoria faksowe

Super G3 FAX Board-BR1
Zdalny Faks-A1
IP FAX Expansion Kit-B1

Inne opcje

• Wkład zszywający

Zszywka Zszywka-P1
– Y1/Z1

• Akcesoria dostępności

ADF Access Handle-A1

Informacje o bezpieczeństwie produktu Informacje o producencie
